Engineered for high lifts and wide operating ranges

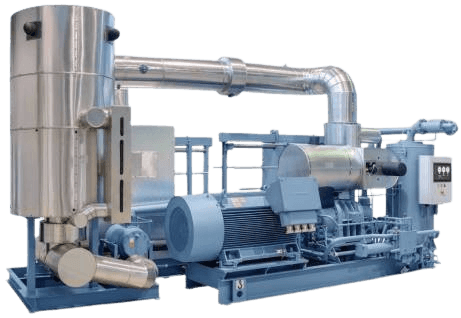

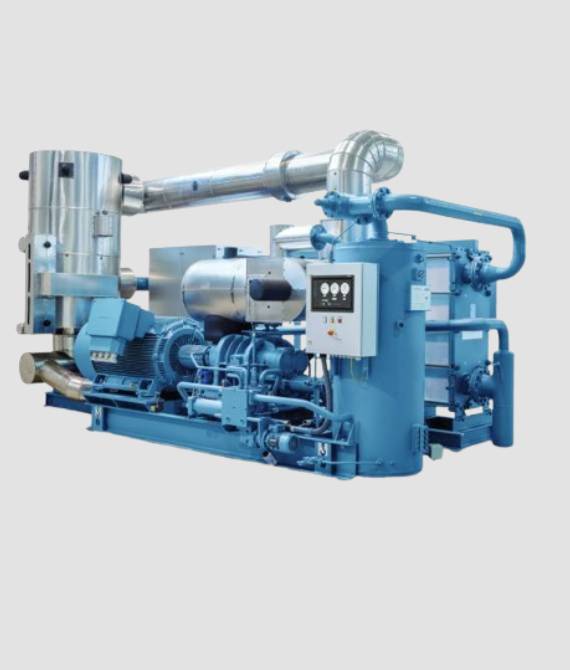

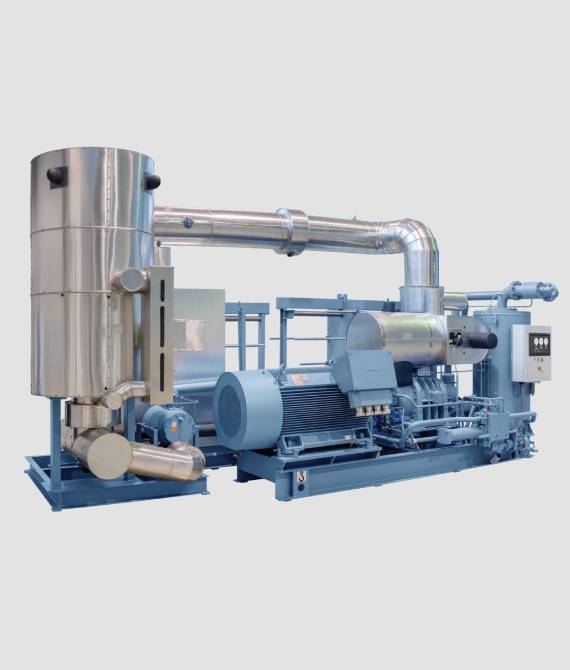

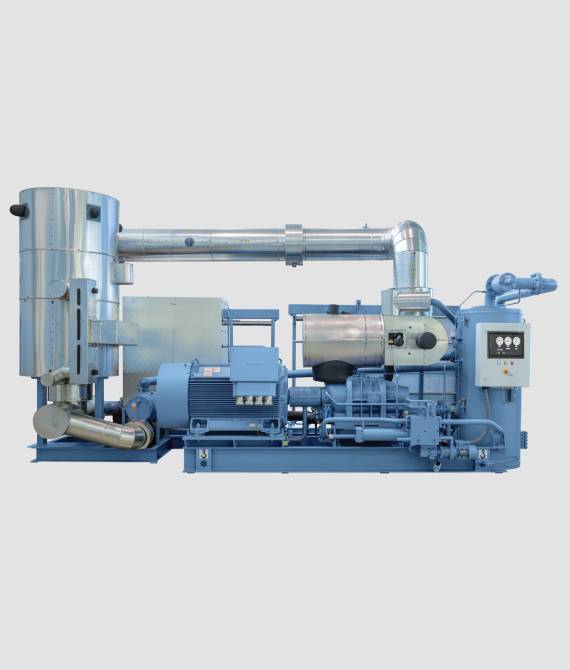

The GEA Grasso FX P and FX Pduo series is recognized as an industry benchmark for refrigeration systems requiring large temperature differences between evaporation and condensation. Ideal for both freezing and cooling processes, this versatile chiller range covers a wide capacity spectrum – from 200 to 5,800 kW – making it suitable for a broad range of industrial applications.
Designed for flexibility and efficiency, the FX P series supports operation as a chiller, heat pump (up to 28 bar), or dual-function system. Its modular design allows precise system customization, while advanced control features ensure optimal performance under all load conditions.
Key features and highlights
- Suitable for use as a chiller, heat pump, or dual-function system
- Modular and adaptable design
- Stepless capacity control via slide valve and frequency inverter
- Automatic variable Vi (internal volume ratio) for optimized efficiency
- High-efficiency plate heat exchangers for both evaporator and condenser
- Supplied with a liquid-cooled condenser, compatible with alternative condenser types
- Available with one or two screw compressors (FX P or FX Pduo)
- Low discharge temperatures, even at high pressure ratios
- Optional economizer for enhanced energy performance
- CE-certified, meeting high standards for safety and performance
| Type | Compressor | Capacity¹c (kW) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| GEA Grasso FX P (1 compressor) | ||||||
| 200 | GEA Grasso SH-C | 209 | 2100 | 1700 | 2200 | 3200 |
| 250 | GEA Grasso SH-D | 245 | 2100 | 1700 | 2200 | 3250 |
| 300 | GEA Grasso SH-E | 294 | 2100 | 1700 | 2200 | 3350 |
| 350 | GEA Grasso SH-G | 348 | 2100 | 1700 | 2200 | 3500 |
| 450 | GEA Grasso MC-H | 445 | 3400 | 2000 | 2300 | 5200 |
| 550 | GEA Grasso MC-L | 525 | 3400 | 2000 | 2300 | 5400 |
| 650 | GEA Grasso MC-M | 646 | 3700 | 2100 | 2650 | 6800 |
| 800 | GEA Grasso LT-P | 795 | 4000 | 2100 | 2650 | 7800 |
| 900 | GEA Grasso MC-N | 855 | 3950 | 2200 | 2650 | 8100 |
| 1100 | GEA Grasso LT-R | 1027 | 4200 | 2200 | 2650 | 9000 |
| 1300 | GEA Grasso LT-S | 1274 | 4200 | 2200 | 2650 | 9600 |
| 1500 | GEA Grasso LT-T | 1394 | 4200 | 2200 | 2650 | 10300 |
| 1700 | GEA Grasso LT-V | 1647 | 4600 | 2500 | 2900 | 11000 |
| 2000 | GEA Grasso LT-W | 1900 | 4800 | 2600 | 2900 | 12000 |
| 2400 | GEA Grasso LT-Y | 2306 | 5000 | 2500 | 3650 | 12800 |
| 2800 | GEA Grasso LT-Z | 2761 | 6500 | 2800 | 3650 | 14900 |
| 3300 | GEA Grasso LT-XA | 3260 | 6700 | 3000 | 3650 | 16250 |
| 4200 | GEA Grasso LT-XB | 4169 | 6500 | 4000 | 5000 | 25500 |
| 5000 | GEA Grasso LT-XC | 4923 | 7000 | 4500 | 5000 | 27500 |
| 5800 | GEA Grasso LT-XD | 5828 | 7500 | 4500 | 5000 | 30000 |
| GEA Grasso FX Pduo (2 compressors) | ||||||
| 2×200 | 2 × GEA Grasso SH-C | 418 | 4500 | 2400 | 2300 | 4800 |
| 2×250 | 2 × GEA Grasso SH-D | 490 | 4500 | 2400 | 2300 | 4900 |
| 2×300 | 2 × GEA Grasso SH-E | 588 | 4500 | 2400 | 2300 | 5180 |
| 2×350 | 2 × GEA Grasso SH-G | 696 | 4500 | 2400 | 2300 | 5480 |
| 2×450 | 2 × GEA Grasso MC-C | 890 | 5200 | 2500 | 2650 | 10000 |
| 2×550 | 2 × GEA Grasso MC-L | 1050 | 5700 | 2750 | 2650 | 10600 |
| 2×650 | 2 × GEA Grasso MC-M | 1292 | 6000 | 2750 | 2650 | 11150 |
| 2×800 | 2 × GEA Grasso LT-P | 1590 | 6700 | 3200 | 2900 | 13500 |
| 2×900 | 2 × GEA Grasso MC-N | 1710 | 6500 | 3200 | 2800 | 12200 |
| 2×1100 | 2 × GEA Grasso LT-R | 2054 | 7300 | 3600 | 3600 | 14500 |
| 2×1300 | 2 × GEA Grasso LT-S | 2548 | 7500 | 3600 | 3600 | 15500 |
| 2×1500 | 2 × GEA Grasso LT-T | 2788 | 8100 | 3900 | 3600 | 17500 |
| 2×1700 | 2 × GEA Grasso LT-V | 3294 | n.a. | n.a. | n.a. | n.a. |
| 2×2000 | 2 × GEA Grasso LT-W | 3800 | n.a. | n.a. | n.a. | n.a. |
| 2×2400 | 2 × GEA Grasso LT-Y | 4612 | n.a. | n.a. | n.a. | n.a. |
¹ secondary refrigerant temperature 12/6 °C, cooling medium temperature 27/32 °C
