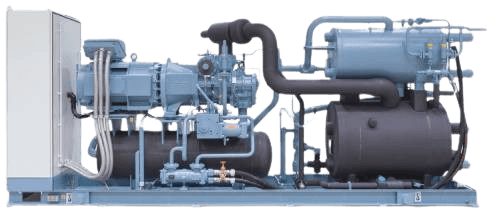

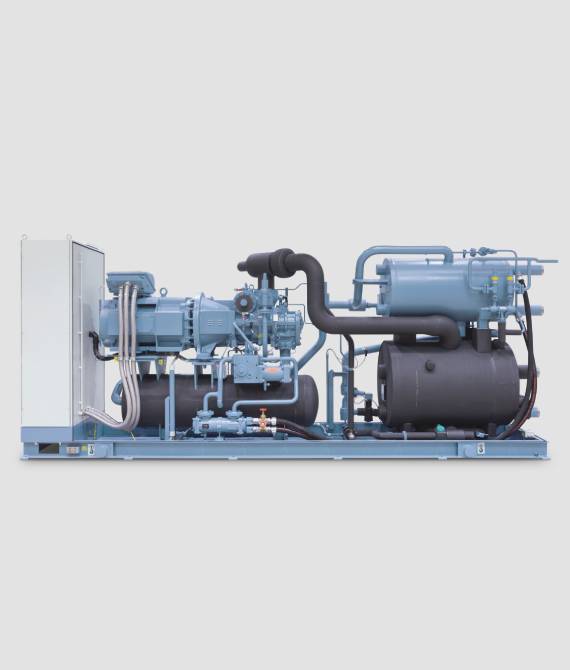

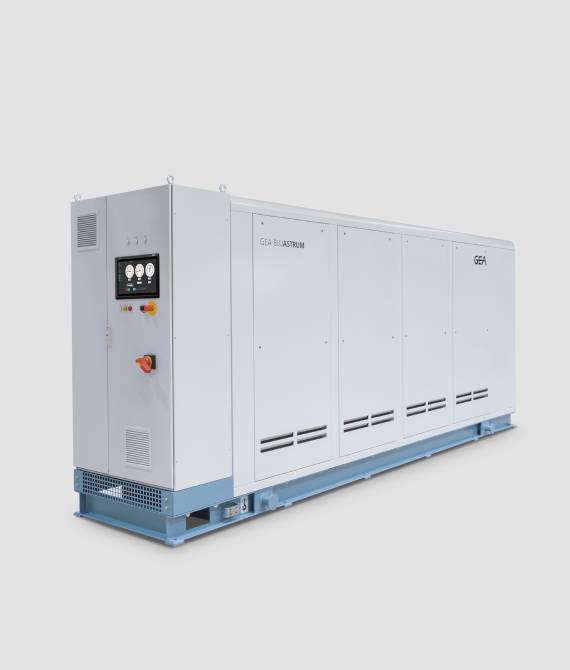

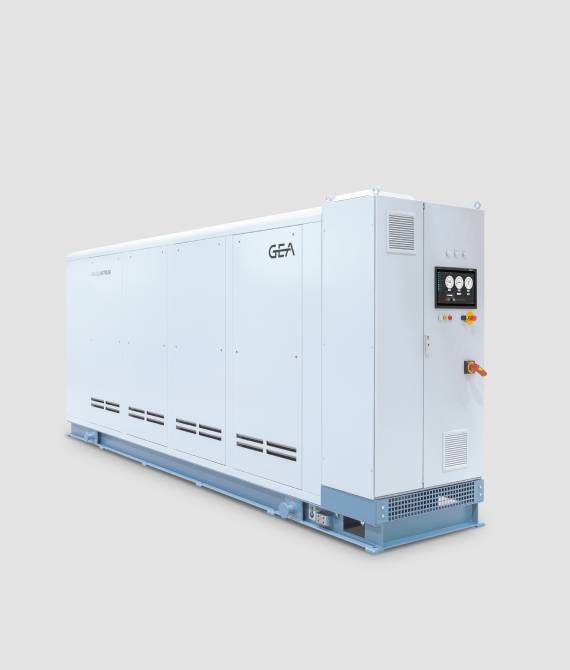

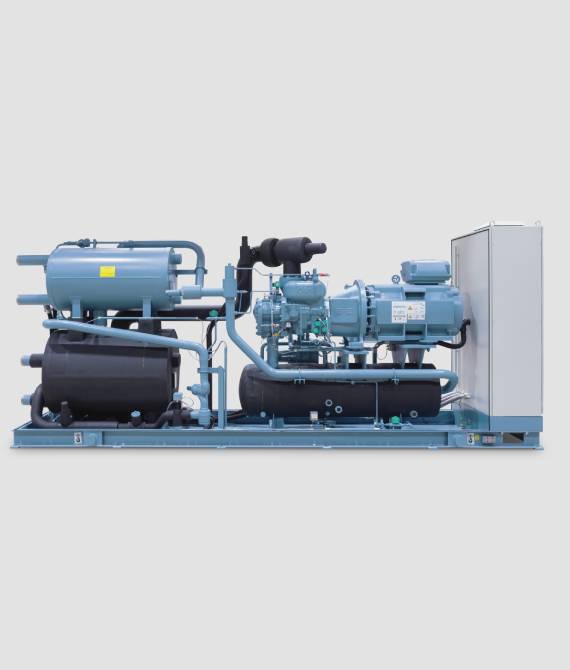

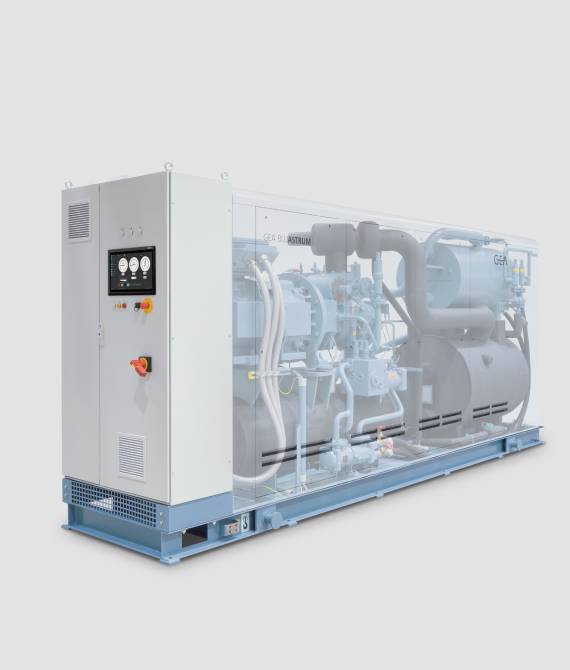

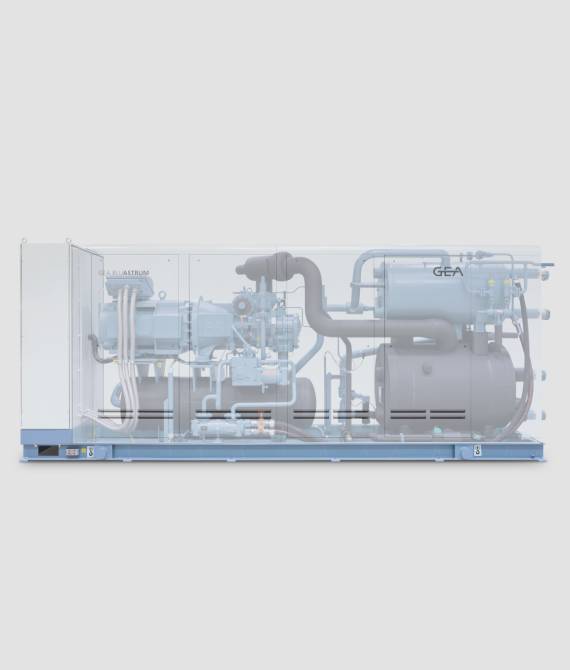

The economical entry into the GEA blu chiller range
GEA BluAstrum offers an economical entry into the Blu chiller series, delivering high performance without compromising on technology. This compact screw chiller is engineered for ease of use, with a focus on minimal maintenance and practical installation.
With a slimline design measuring just 1.0 to 1.2 meters in width, BluAstrum units are easy to transport, relocate, and install – even in congested plant rooms. Limited dynamic movement within the system further reduces wear, helping keep service requirements to a minimum.
Key features and highlights
- Space-saving screw chiller with a compact footprint
- Low-maintenance design with minimal moving components
- Cooling capacity: 390–1,730 kW (R717, 12/6 °C)
- Secondary refrigerant outlet temperature: –15 to +18 °C
- Optional remote version available without condenser
- Optional casings for added touch protection and noise reduction
- CE-certified, meeting high standards for safety and performance
| Type | Cooling capacity (kW), R717, +12/+6 °C | EER | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| GEA BluAstrum 400 | 390 | 4.7 | 4700 | 1000 | 2100 | 5000 |
| GEA BluAstrum 500 | 550 | 5.0 | 4700 | 1000 | 2100 | 5500 |
| GEA BluAstrum 800 | 740 | 4.8 | 5000 | 1000 | 2100 | 6000 |
| GEA BluAstrum 900 | 880 | 5.1 | 5000 | 1000 | 2100 | 6500 |
| GEA BluAstrum 1000 | 1100 | 5.1 | 5000 | 1000 | 2100 | 7000 |
| GEA BluAstrum 1500 | 1450 | 5.5 | 6500 | 1200 | 2400 | 8000 |
| GEA BluAstrum 1800 | 1730 | 5.4 | 6800 | 1200 | 2400 | 8500 |
