High-performance compressors for sustainable heat pump applications
GEA Grasso V XHP compressors utilize natural refrigerants, such as ammonia, to provide sustainable solution while delivering maximum efficiency, making them ideal for heat pump systems that require both high performance and low emissions.
Key features and highlights
- 63 bar design pressure
- Heat carrier supply temperatures up to +95 °C
- Heat source temperatures up to +60 °C
- Optimized for variable speeds from 500–1,500 rpm
- Welded compressor housing design for exceptional temperature separation
- Compliant with EN 12900 and EN 13771 efficiency standards
- Compatible with ISO VG 68 oil, simplifying the oil return design
- No cylinder head cooling required
- Smooth operation with low noise levels
- High-quality materials and proven engineering
- Patented condensate drain system for enhanced reliability
- Available as a packaged unit

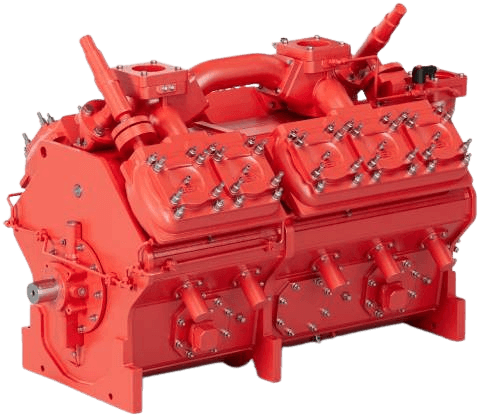

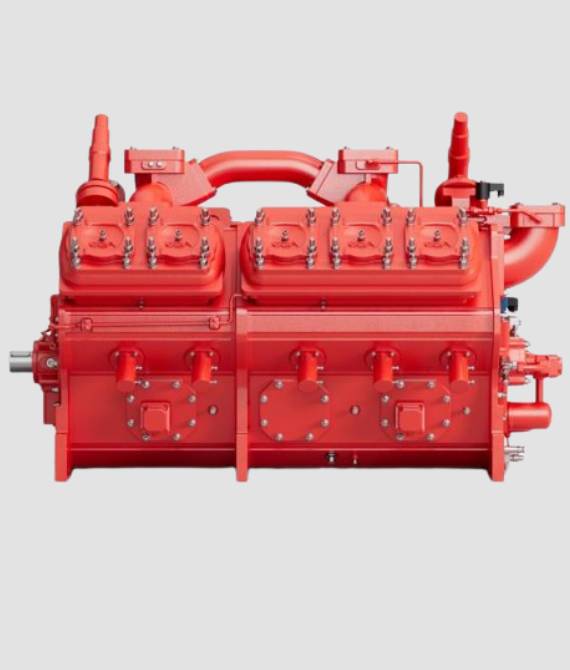

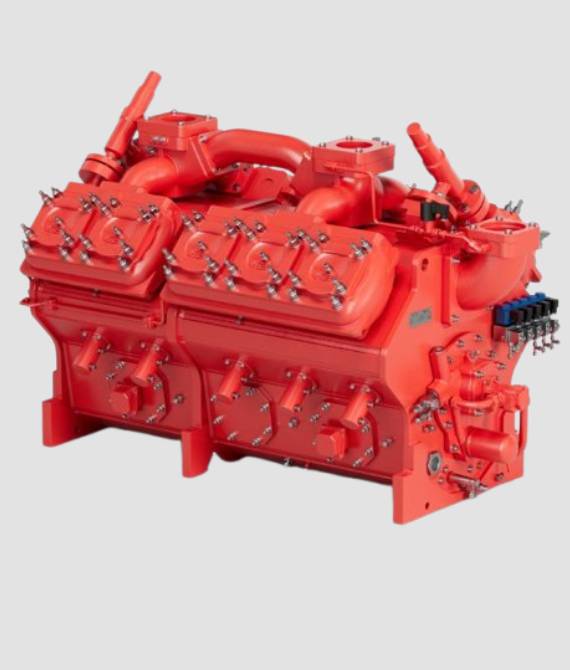

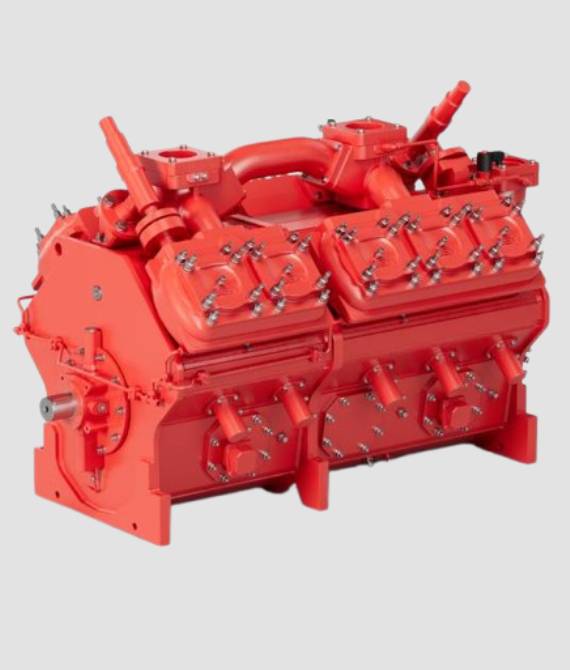

GEA Grasso V XHP
| Models of GEA Grasso V XHP | V 350 XHP (4 cyl) / V 550 XHP (6 cyl) / V 750 XHP (8 cyl) / V 950 XHP (10 cyl) |
|---|---|
| Refrigerant | R717 |
| Heating capacity +35/+95 °C (+95/+203 °F) | Approx. 700 to 2300 kW (2400 to 7847 MBH) |
| Maximum discharge pressure | Tc = 95 °C / 203 °F |
| Speed minimum / maximum | 500 / 1500 rpm |
| Total swept volume at full load 1500 rpm | 376 to 941 m³/hr (221 to 554 CFM) |
| Drive type | Direct drive |
| Design discharge pressure | 63 bar(g) / 913.7 psi |
| Controls | GEA Omni control panel |
